1.  INTRODUCTION

The need for a lighter and more compact ladder for caving has always been obvious to anyone who had to carry a soaking wet wood and rope ladder in and out of any but the easiest of caves.  Probably the earliest of lightweight ladders were made by dÙJoly in France during the 1930's where the need was more urgent than in this country.   Ladders often had to be transported up several thousand feet of mountain side on rough tracks and the amount of ladder repaired for some of the bigger French potholes would probably be enough to ladder every pitch on Mendip.

The use of lightweight tackle did not cone into general use in Britain until after the Second World War, probably due to the increased availability, and technique of using, aluminium alloys developed in the aircraft industry.  The Bristol Exploration Club had previously produced some lightweight ladder which was not entirely satisfactory, but with the opening of St. Cuthbert's Swallet late in 1953 with its large number of pitches the need was pressing for a considerable amount of new tackle.  The decision was made to concentrate on lightweight ladders, not only from the ease of transport but also in view of the higher factor of safety, ease of inspection and increased life when left underground for long periods. In actual fact during the earlier stages of exploring St. CuthbertÙs ladders were left in the cave for up to three months without any signs of corrosion or other deterioration.

This Report is intended to put on record the experience of the B.E.C. in designing such tackle and it is felt that if it prevents anyone else committing some of the mistakes the B.E.C. made, it will have served a useful purpose.  Also included is a description of a piece of equipment designed for a specific purpose in St. Cuthbert's, the Hand Climbing Line, or as it is more popularly known by club members, the 'Knobbly Dog'.  This is a new idea as far as the writer knows and may prove useful in other caves.  In conclusion are some remarks dealing with the use of tackle.

2.  ORIGINAL B.E.C. LIGHTWEIGHT LADDER

Figure 1

This was made in about 1942 or 1943 when the only transport available from Bristol to Mendip was bicycles.  It consisted, of aluminium alloy tubes 1/4" diameter for rungs and the wires were 1/16" diameter Bowden cable.  The attachment of the rungs to the wire was simple if nothing else.  The rungs were drilled right through at either and, the wire pulled out through the open end and tied in a clove hitch round a 2 B.A. brass bolt.  The nut was tightened up and the whole lot, knot, nut and bolt soft soldered tug-ether.  In practice it worked reasonably well with the small amount of use to which it was put but the wire was too small and started rusting.  Also, with the kinking of the wire around the bolt, the pull did not come in a straight line and the wire started cutting through the thin wall of the rungs.  The writer suggests that the factor of safety was about zero!  Another failing was that having been left rolled up for a considerable period, on the only occasion that the writer used it, after having stopped off at the bottom of the 40 Foot Pot in Swildons Hole, the lower section rolled itself up and hung eight feet up the pitch.  However, it was light and small enough to go in a bicycle saddle bag.  The method of rung fixing is shown in figure 1.

3.  B.E.C. STANDARD LIGHTWEIGHT LADDER- Materials & Preparation

The first ladders built to this pattern were constructed in 1949-50.  There were a number of faults in these early ladders but it is believed that these have been overcome.  The descriptions given are amplified by the drawings of the component parts.

End Plugs.  These are-made from 1/2" diameter Duralumin rod and are cut 1" long. They are drilled and tapped-along their length to take the 1/4" Whitworth grub-screws that are used. Duralumin is preferable to aluminium as it is considerably easier to drill and, in particular, to tap the holes.

One of the major defects of the earlier ladders was the design of the end plugs.  They were made as shown in figure 2(a) and due to the tapped hole stopping as shown the grub-screw, when tightened, forced the wire into the aluminium.  Under load this deformed and let the rung slip, down the wire.  One remedy that was tried was to insert a plug of aluminium between the grub-screw and the wire as it was thought that the tapping was not deep enough but this was not successful, the rung still slipping.  The ladder was eventually dismantled and the grub screw holes drilled and tapped right through, as the present design, then reassembled using new wire.  After the initial bedding-in, no more trouble was experienced.  With this method the wire is forced into the hole and given a kink when the screw is tightened.   This kink is not severe enough to weaken the wire appreciably but does positively prevent slipping of the rungs.  The present method is shown in figure 2(b).

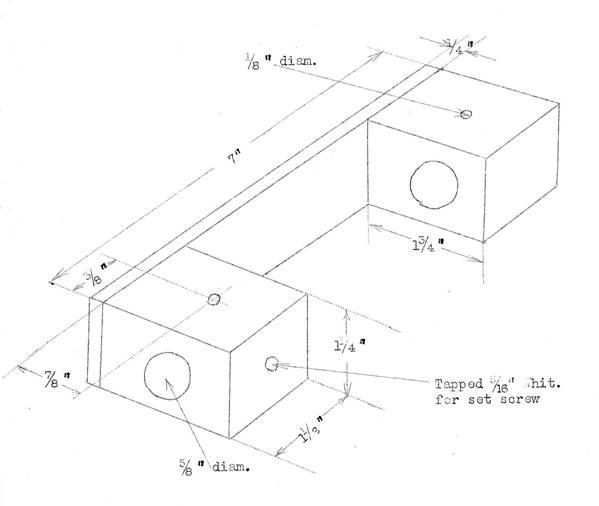

Figure 2

Rungs.   These were originally constructed of 3/4"o.d. x 1/16" wall aluminium alloy tubing but a cheaper substitute was found by using 3/8"o.d. commercial aluminium electrical conduit.  This suffered from the drawback that the wall thickness is greater than 16 gauge and a press of some sort is needed to insert the end plugs.  All later ladders were constructed from 5/8"o.d. x 16 gauge wall alloy, tube and in this case, the end plugs are made from 1/8" rod. All other dimensions of rungs are as stated on figure 3.         To facilitate the construction of the large number of rungs required, a cutting and drilling jig has been constructed for 5/8"o.d. rungs.  This is shown, in figure 4 and is case hardened all over and is surface ground on both sides.  The rungs are cut to length by sliding in a length of tubing flush with one end and then cutting down close to the other end with a hacksaw, finally filing the end square against the jig.  The burr on the outside of the rung can either be removed by filing or by rotating the rung against a sanding disc of a 3/4" electric drill.  At the same time the rung end should be chamfered. The burr inside the rung is best cleaned by rotating a round nosed parallel rotary file exactly 1/2" diameter in a 1/4" electric drill fitted in a bench stand, then feeding the rung end on to the rotary file for not more than 1/8".  This provides a starting guide when pressing the plugs in.

Figure 3

The next operation is to insert the end plugs.  The plugs for the earlier ladders were a sliding fit in the tube and this was found to be a serious drawback as after the wire holes were drilled the plugs slid out of line.  For this reason the practice has since been adopted of using 16 gauge (0.064") wall thickness.  With 5/8” o.d. tube the inside diameter is 0.497" and this gives an interference fit of 0.003" when using 1/2" diameter plugs.  The plugs are pressed into position, one at a time, by using a carpenterÙs cramp as shown in figure 5.

Figure 4

Figure 5

After inserting the plugs the rung is placed in the cutting and drilling jig and the holes for the wire drilled using a 1/8" drill.  If the rungs are made of Dural or a similar hard alloy the holes are slightly countersunk to remove the sharp edges.  It has been found that some of the individual strands of wire in contact with the hole broke after a few months use if this was not done.

Grub Screws.  These are 1/4" Whitworth x 1/4" long hexagon socket grub screws, preferably of "Allan" or "Unbrake" manufacture.  The type of end of these screws varies, figure 6, but the only one readily available is the half or reversed cup point (a).  Although this is not ideal it seems to serve well in practice.  There is one variation of this that must not be used and this is where the cup point is serrated.  This, when tightened, cuts into the individual wires of the rope.  The preferred type is the cone point of 60° (b), if this can be obtained, as this causes no damage to the wire.

Figure 6

Wire Rope.  Originally this was 10cwt aircraft cable of 7/19 construction but now 15cwt cable of similar construction is used as the cost is the same.  This type of cable is extremely flexible and is made of seven strands, arranged as (a) in figure 7, each strand being made from nine teen wires (b), and each individual wire, approximately 0.01" diameter is galvanised.  On no account should a wire rope be used with a fibre core as this acts as a sponge holding water in the centre of the rope and thus accelerates corrosion. (Editor's Note: Fibre cored wire ropes have been used satisfactorily for caving ladders without corrosion - see Caving Report No. 3A.)

Figure 7

End Fittings (C-Links).  Considerable variations exist in the type of end fittings but the most popular is the C-Link and this has been standardised for all B.E.C. ladders and ancillary equipment.  The simplest is undoubtedly a link cut from a piece of chain.  Various chains were cut and tested on a tensile testing machine and the low figure at which most links failed was rather surprising.   Loads in the order of four or five hundredweight resulted in the links opening right out as shown in figure 8.  Tests were continued until a section of 3/8" close pitch chain was found to stand 520 pounds before any opening of the gap occurred. The loading was slowly increased with the gap gradually widening until at a load of just over nine hundredweight the link opened fully with no increase of load.  The link showed no sign of fracturing.  This chain, which was manufactured from E.N. 8 steel, was considered to be more than adequate for the purpose and a length was obtained - sufficient for several hundred links.  As the facilities were available these links were cadmium plated and this does in fact give a finished look to the completed ladders.

Figure 8

Thimbles.  The wire end is passed round a tinned iron or stainless steel thimble which contains the C-Link.  The readily available thimbles are designed for 1/2" circumference rope which is slightly larger than 10 or 15cwt. aircraft cable.  The correct thimble for the aircraft cable seems to the writer to be rather small and flimsy and so the 1/2" circumference thimble has been used, being flattened to the diameter of the rope used.

Wire End Fixing.  Two methods have been used for finishing off the ends of the wire.  The earlier ladders using 10cwt cable were clamped and soldered in a ferrule.  All the later ladders using 15cwt cable have been spliced.

Figure 9

With the ferrule method a one inch long piece of 1/4"o.d. copper pipe is carefully cleaned and flattened in a vice to the shape shown in figure 9, just sufficiently to slide two sections of the wire through it.  The ferrule is then thoroughly tinned inside and out.  This is important as otherwise corrosion could be rapidly set up between the copper and zinc coating of the wire.  The wire has then to be tinned either side of the thimble for an inch only, and the free end cut so that it stops just at the end of the ferrule.  To assemble, slide the ferrule on to the wire, then pass the wire round the thimble containing a C-Link and finally slip the end of the wire into the ferrule again. After pulling the wire tight round the thimble, the ferrule is squeezed as flat as possible in a vice and then the wire-ferrule assembly is soldered up.  When soldering care must be taken not to apply any more heat than necessary and under no account must a naked flame be used as otherwise the temper of the wire is lost.  For the same reason a tin-lead solder is also preferred.  It will be obvious that a non-corrosive flux is essential and for this purpose "Alkaray" flux, which is approved by the Aeronautical Inspection Department as being non-corrosive, has been used on all the later ladders.  It is also necessary to clean the wire well before soldering and methylated spirits, carbon tetrachloride or a similar solvent are required to remove the oil incorporated in the rope during manufacture.  The "Alkaray" flux has none of the penetration of, say, ''killed spirits" and in practice has been found difficult to solder rope which has been kept in stock for a period when the zinc coating has tarnished.  (Editor's note: This method of forming end loops is not to be recommended as the long term effects of the solder on the rope are not known, see the revised edition of Caving Report No. 3.)

Eye splicing the cable end seems to be the safest method as it is possible to inspect the splice periodically by removing the binding, whereas with the ferrule method it is possible for the wire to corrode in the ferrule and the first warning is when the ladder breaks in service.  The difficulty of splicing the cable is not great and anyone can splice a hemp rope can, after a little practice, make a fair splice in wire rope.  However, it is a tedious job and painful on the fingers. The writer, who is by no means an expert at the job, finds it takes approximately an hour to make one splice. The writer's technique is first to bind the cable five inches from the free end and then open out the strands back to the binding and solder the cut ends of each strand for 1/8" to prevent the individual wires coming apart.  Baker's Fluid or "Fluxite" can be used for this as the ends will be cut off later.  Then assemble the cable round the thimble containing the C-Link.  The cable should be bound to the thimble, or the method the writer finds easier, using the oversize thimbles, is to close over slightly the outside of the thimble so that-the wire is held securely.  Then remove the binding from the free end of the cable.  Various ways are possible for making the first round of tucks and the method adopted by the author is that given by the British Standard Institute for splicing wire ropes.   Details are given in the Appendix.

The British Standards Institute specify a five round splice three rounds of full strands and the last two with approximately half of the wires cut out, thus causing the finished splice to taper.  The writer, however, prefers to make four full rounds and then two with halved strands just to be on the safe side.  These additional rounds of tucks are made in exactly the same way as the second round, being pulled tight and beaten after each round.  Finally the surplus wire is cut off sand the whole splice served (or bound) with either waxed twine or small diameter (20 gauge maximum) galvanised wire.  The purpose of the binding is to hold the whole splice tight and to cover the short projecting cut ends of wire.  The waxed twine is preferable as it leaves the splice relatively flexible but it is liable to chafe or rot through under cave conditions unless frequently inspected and renewed.

One point that is worth taking some trouble over is getting the distance of the ends, from the rungs, correct.  This should be 5 1/2" from the centre of the end rung to the inside of the far end of the C-Link so that when the ladders are joined the rung spacing remains at an 11" pitch.  If care is not taken it will be found that one side will hang lower than the other, which makes it disconcerting when climbing the finished ladder.

Another method of finishing the ends is the "Talurit" splicing process. This is similar to the ferrule method except that the ferrule is a thick aluminium sleeve which is swaged on to the rope .by means of a hydraulic press.  This process is usually done commercially and tends to be expensive, costing 2/11d per splice although a reduction in price is made when more than six are done at one time.  In comparison, the charge for a hand splice, made commercially, is 1/9d irrespective of the number.

4.  B.E.C. STANDARD LIGHTWEIGHT LADDER - Assembly

Having prepared all the component parts of the ladder as described in Section 3 the wire rope sides are cut to length allowing several inches spare.  One end is soldered solid for approximately two inches and then filed down so that it slides easily through the holes drilled in the rungs. As this end of the rope is cut off after threading, "Baker's Fluid" may be used as the flux for soldering.

C-Links are spliced on the unsoldered ends of the two wire ropes and the first rung threaded on and positioned 5 1/2 inches from the centre of the rung to the inside of the far end of the C-link.  The grub screws are then tightened to clamp the rung.  The remaining rungs are clamped three or four at a time using either the jig shown in figure 10 or else a wooden spacer 10 3/8" long.  When the last rung has been fixed the soldered ends are cut off and the C-links spliced in position.

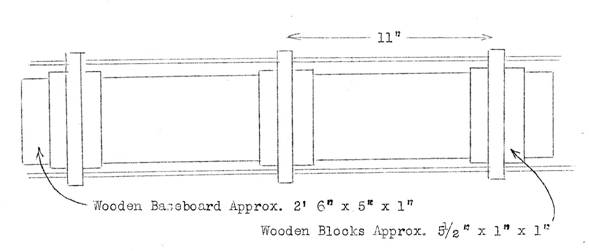

Figure 10

At this stage the wires and splices are treated with a good rust preventative such as "Tokall". This is obtainable from Croda Ltd, Cowick Hall, Snaith, GOOLE, Yorks at 17/6 per gallon, including carriage and can be applied by brush, oil-can or dipping.  The author finds an oil can very effective, dipping being messy and requiring a large volume of liquid.  The ladder is left to dry for two or three days before the splices are served.

All the grub screws are checked to ensure, that they are really tight and then to protect them against rust and mud the screw sockets, exposed threads and ends of the rungs are filled with hot candle wax.  The surplus wax is removed by lightly countersinking with a 5/16" drill. When in use the ladders should be treated with "Tekall" or a similar solution not less than twice a year - this being applied when the ladders are clean and dry.

Rung and Wire Spacing.   The rung spacing has been standardised at 11"; this being about the practical maximum.  Climbing a ladder with a 12" pitch is quite an effort, whilst some ladders of another club with rungs at 15" or 16" pitch proved impossible to a novice who had to be pulled up and a very strenuous gymnastic feat for an experienced caver.

The spacing between the wires has been fixed at 6".  This gives plenty of room for the normal climbing boot complete with nails.

Ladder Lengths.  The ladders are made in lengths of twenty and forty feet, these being considered convenient lengths.  It is felt that standardised, lengths should be made to avoid confusion, it being annoying to reach a pitch and find that the ladder is too short because two ladders used were each five feet shorter than it was thought.

5. WOOD AND WIRE LADDERS

When lightweight metal ladders were first put into service a few club members complained that when climbing these after a strenuous wet cave, the aluminium rungs caused cramp in their hands.  This was no doubt due to the high thermal conductivity of the metal, so several lengths of ladder were made using wire rope and wooden rungs.  An experimental ten feet length was first built and when this proved satisfactory, a further fifty feet were made.  These were not replaced when they wore worn out as the original complaints had ceased, probably due to the fact that in St. Cuthbert's Swallet, the scene of much of the club's activities for the last few years, the pitches had been fitted with rigid metal ladders.

The general design can be seen from figure 11.  The main consideration was to make them as simple as possible using only simple hand tools.  The rungs are made of ash, 7" x 1" x 7/8" having all the corners removed, and drilled at six inch centres to take 10cwt wire rope.  They are supported on aluminium sections made by cutting 5/8" x 5/8" diameter plugs in half to form semi-cylindrical pieces, and drilled to make a sliding fit on the cable.  A short length of tinned 18swg wire was passed through the centre of the wire rope, bent parallel to the rope and soft soldered to take the weight.  A similar solder globule above the rung enabled the rung to be slid up the wire for inspection of the rope but at the same time preventing the rung from getting too far out of position. Obviously this type of ladder could only be hung from one end.

Figure 11

6. SPECIAL PURPOSE ULTRA-LIGHTWEIGHT LADDER

(Editor's note: This section had not been written by Coase, and Petty does not know the method of construction.  Very clear diagrams had been drawn, however, and these are reproduced as figures 12 - 14. As the reproduced diagrams are not as clear as the originals the following interpretation of them is given.)

The ladder was constructed using 10cwt, 7/14 construction cable and had rungs of 6" overall length with a rung pitch of 11", the distance between the wire centres being 5 1/4".  The rungs were oval in cross-section, 3/8" x approximately 11/16" (the latter figure is not given on the drawing and has been obtained by measurement of the rung as drawn) but whether this cross-section was purchased or formed from circular tubing is not known.  Similarly the wall thickness of the tubing is not shown but appears to be approximately 14 gauge.  (Don Coase was a draughtsman and it is assumed that his original diagram was drawn at least approximately to scale.)

Each rung was prepared by drilling, through one side only, two holes at 5 1/4" centres with a No. 32 drill.  On the opposite side of the rung was cut an 1/8" wide slot, 7/32" deep and at an angle of 45° to the length of the rung.  This is shown in figure 12.

The method of rung fixing appears to have been as follows.  Rungs and 1/4" diameter copper ferrules were threaded alternately on to the wire rope, then at 11" centres the ferrules were squashed flat and soldered.  A rung was centred over each ferrule by threading the flattened ferrule through the slot in the bottom of the rung and finally the rung was clamped by flattening the end tightly over the ferrule.  This method of fixing would necessitate the ladder being hung

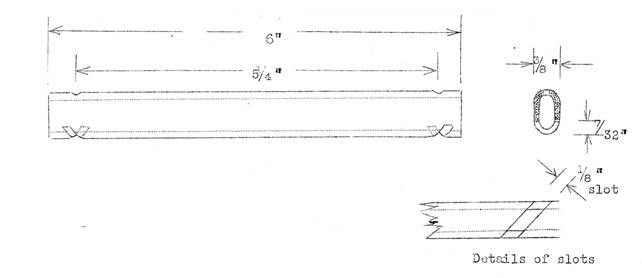

Figure 12

from the correct end so that the rung was forcing the ferrule against the drilled hole and not against the slot.  The fixing of the rungs is shown in figure 13.

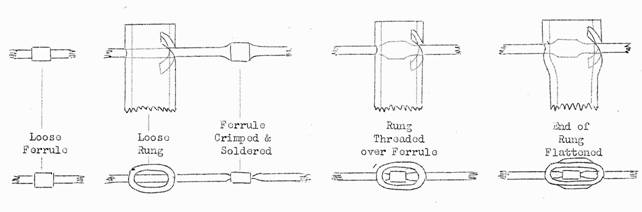

Figure 13

The third diagram, figure 14, shows the jig used for slotting and drilling the rungs.  It was manufactured from 3/4" x 1/8" angle iron and made to fix on a bench vice in place of the hardened jaws.  The inside measurements of the angle iron were cut to 13/16" x 11/32" from the 3/4" x 3/4" and they are so arranged in the vice that they form, in cross-section, a hollow rectangle into which the rung fits.  Appropriate guide slots and drilling hole were than made.

Figure 14

Note:  A ladder of very similar dimensions is used by the Shepton Mallet Caving Club for normal use but these use the 'taper pin' method of rung fixing. 'The method of manufacture has been fully described in Caving Report No. 3A.

7.   TETHERS AND SPREADERS.

Tethers.  (See figure 15.)  These are simply a length of 15 cwt aircraft cable with the ends finished off by any of the methods suggested for ladders, each end being fitted with a C-link. Standard lengths are five, ten and twenty feet long.  Although it has not been done to date, it is strongly recommended that a loose C-link should be incorporated in each tether, free to slide up and down the wire, to enable the tether to be fixed round a rock or other suitable belay and leaving the end free to carry a spreader and then a ladder.  (See remarks under 'Use of Tackle', below.)

Figure 15

Figure 16

Spreaders.  (See figure 16.)   These are similar in construction to tethers except that they are made with a fixed C-link in the centre.  Even if splicing of the ends is adopted, this centre link requires the wire to be fixed by a tinned copper sleeve or, as an alternative, seized for at least one inch with galvanised soft iron wire, or tinned copper wire, and then run over with solder.

8.   THE USE OF TACKLE.

Due to the short ends of the ladder, if the sides are joined together to a tether, a considerable bending stress is imposed on the wire where it enters the first rung - see figure 17(a).  This is extremely detrimental and leads, to early failure of the wire at the bend point. Another bad practice is to shackle the two sides of the ladder together and fix them over a "Rawlbolt" or stalagmite boss, figure 17(b).  This was done by one club member on the Forty Foot in Swildons and led to one wire breaking whilst the ladder was being climbed.  (Examination of the broken portions of the wire gave increased faith in the soldered ferrule type end fixing as the ferrule had been bent into almost a semi-circle round the "Rawlbolt" without any sign of the wire pulling out.)

Figure 17

For these reasons, it is essential to use either a spreader or to connect either side independently to the ends of a tether, figures 17(c) and (d).  When using a tether and shackling back to the loose C-link it is essential to avoid bending the wire more than absolutely necessary; see figure 18. A further point when shackling two lengths of ladder together is to make sure that there are no twists in the wire before joining the C-links.  It should be obvious that neither the ladder wires nor the tethers must be bent over sharp edges of rock.  Any permanent kink in the wire will reduce the life very considerably and the rock will probably rub through the zinc coating of the wire when the wire is repeatedly stressed with people climbing the ladder.

Figure 18

APPENDIX I

The Splicing of Six Stranded Ropes.

Reference:       British Standards Institution Handbook No. 4, Part 1, pages 178 - 182 (1958 edition).

Place the thimble in a vice with the rope vertical.  The main part of the rope should be on the right hand and the tail strands on the left. Seize the thimble at the crown and on both flanks.

The length of the tails for a five tuck splice should be four inches for each 1/8" diameter of the rope.

First series of tucks.  (See figures 19 and 20.)

The tail strands are numbered 1-6 anti-clockwise and the spaces between the strands of the main part of the rope are lettered A - F, also anti-clockwise.

A fibre main core should be tucked with tail No. 1 and then cut off.  A wire mean core must be split up, distributed amongst the tails and tucked with then for at least three series.

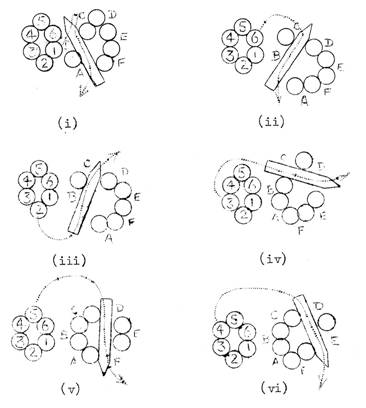

Figure 19

After the third series of tucks, the wires of a wire main core may be broken off and the number of wires in each of the main tails reduced to half the original number, preferably by 'breaking out'.  To 'break out' wires take each wire separately, snatch back to the point where it emerges from the rope and then twist the wire - handle fashion - reversing direction if necessary and the wire should part in the gusset.  The remaining wires should be twisted up to a rough strand formation and at the same time this should enclose the cut ends in the centre. After reducing the number of wires in the strands the fourth and fifth series of tucks are made.

Figure 20
